8544.101

P/N 8544.101

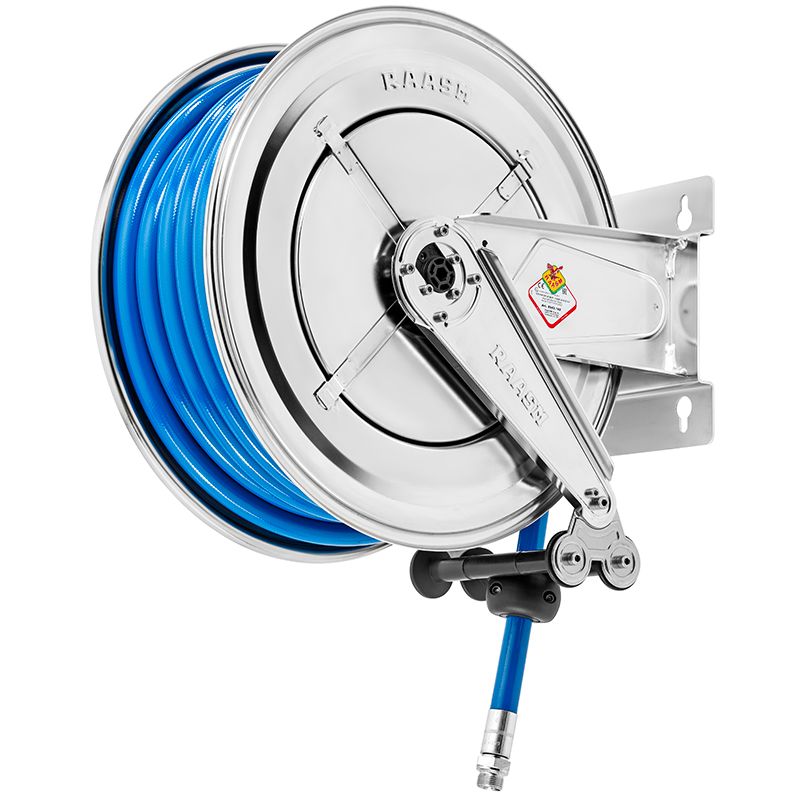

Fixed hose reel in AISI 304 stainless steel s. 540, for air-water, 10 bar, with hygienic hose 15 m, ø 3/4"

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings AISI 316 stainless steel
Hose p/n 988.115
ø and hose length ø 3/4" - 15 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path AISI 304 stainless steel

Certifications

8544.101

Overall dimensions (mm)

8544.101

This product is also available without hose
