8535.101

P/N 8535.101

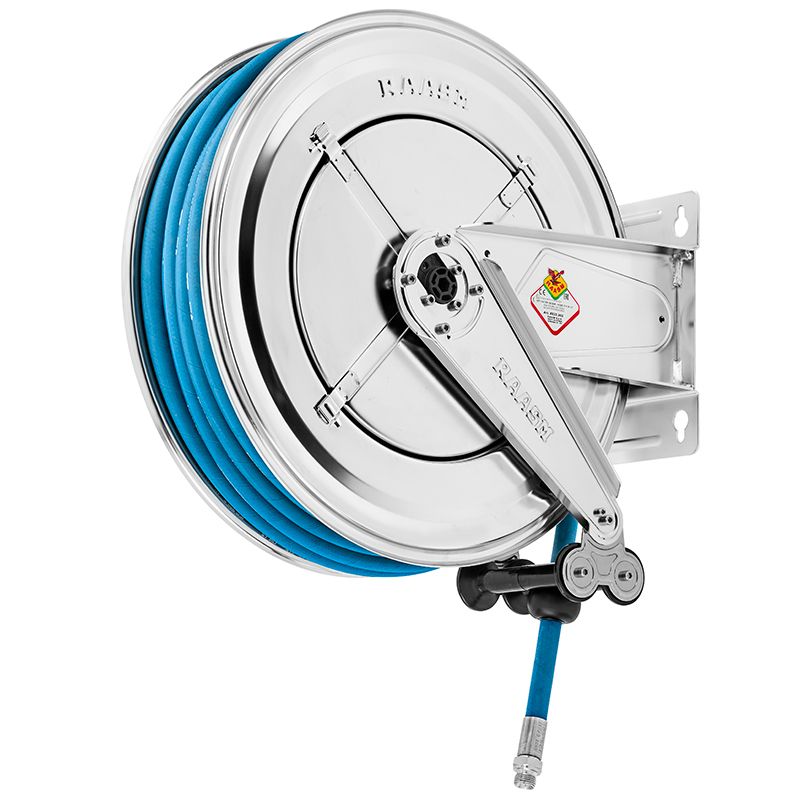

Fixed hose reel in AISI 316 stainless steel s. 530, for air-water, 10 bar, with hygienic hose 20 m, ø 1/2"

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint AISI 316 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 316 stainless steel
Couplings AISI 316 stainless steel
Hose p/n 986.120
ø and hose length ø 1/2" - 20 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path brass - AISI 316 stainless steel

Certifications

8535.101

Overall dimensions (mm)

8535.101

This product is also available without hose

Go to product sheet
