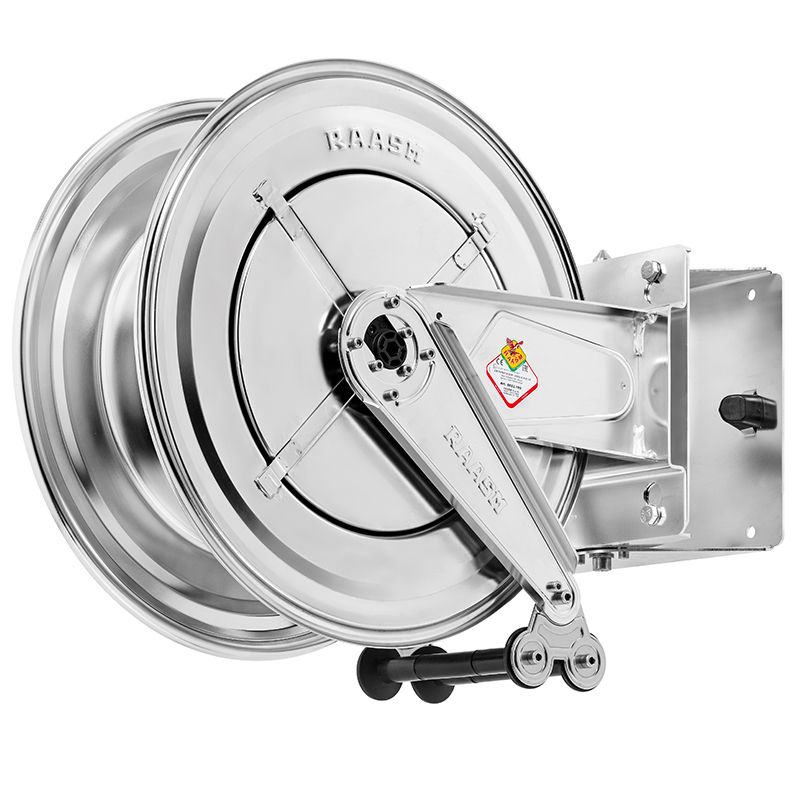

Swivelling hose reel in AISI 304 stainless steel s. 540, for hot water, 200 bar, without hose. Inlet G 3/8" (f), outlet G 1/2" (f)
| Pressure | 200 bar |
| Compatible fluids | water max 130 °C |
| Swivel joint | AISI 304 stainless steel |
| Seals | Viton® |
| Characteristic | swivelling |
| Material | AISI 304 stainless steel |
| Couplings | - |
| Hose | - |
| ø and hose length | - |
| Inlet | G 3/8" (f) |
| Outlet | G 1/2" (f) |
| Reel flow path | AISI 304 stainless steel |
| ø 5/8" | ø 3/4" | ø 1" |
|---|---|---|
| 20 m | 22 m | 15 m |
