8554.205

P/N 8554.205

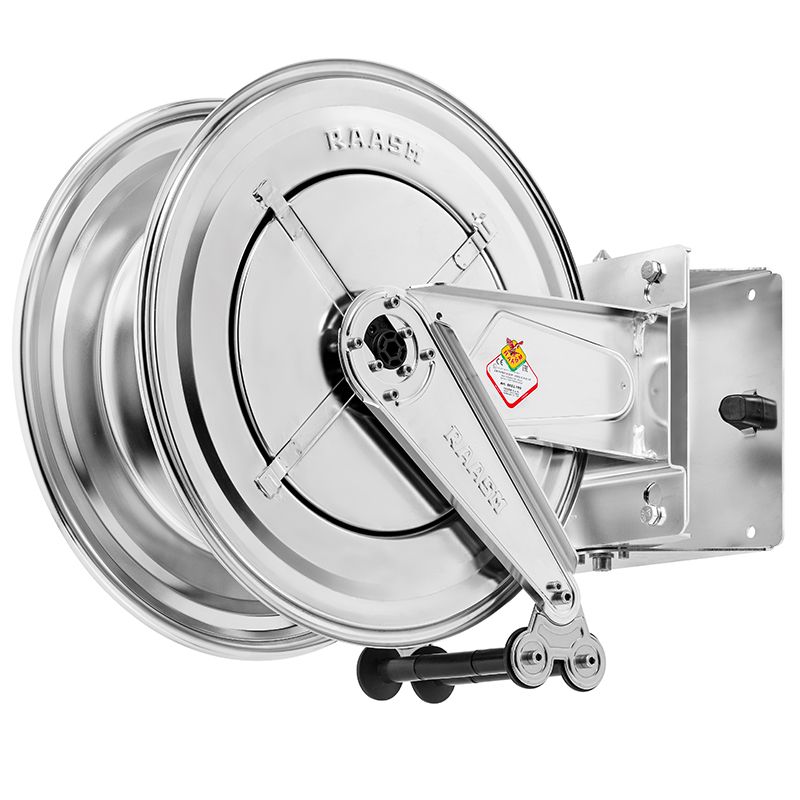

Swivelling hose reel in AISI 304 stainless steel s. 540, for hot water, 100 bar, without hose. Inlet-outlet G 1/2" (f)

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic swivelling
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel

Certifications

8554.205

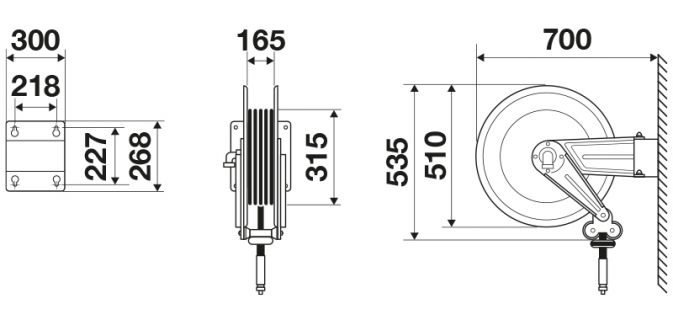

Overall dimensions (mm)

8554.205

Hose reels capacity

ø 5/8" ø 3/4" ø 1"
20 m 22 m 15 m
