8434.250

P/N 8434.250

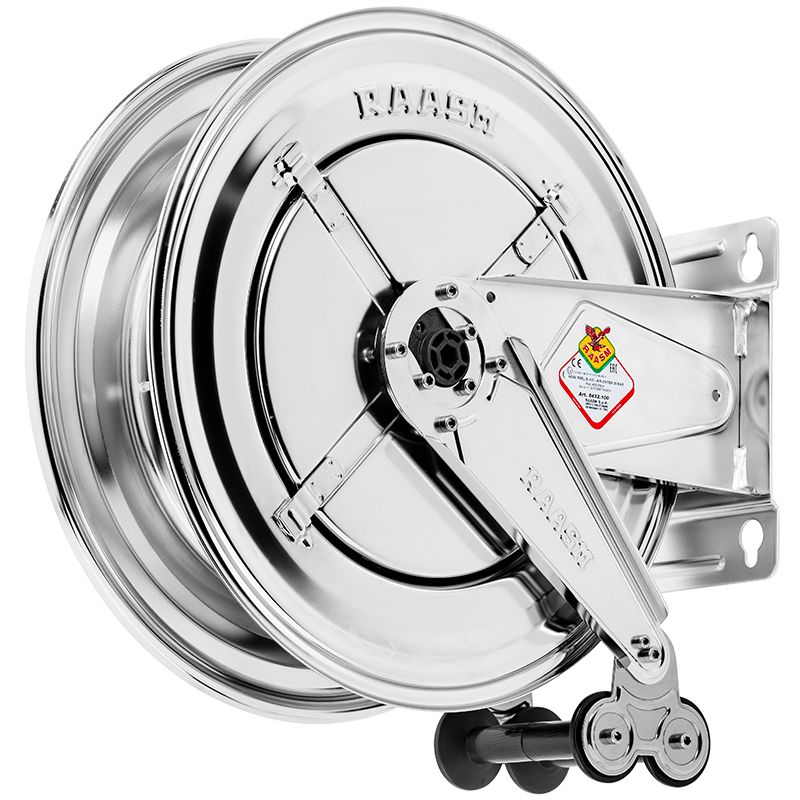

Fixed hose reel in AISI 304 stainless steel s. 430, for hot water, 100 bar, without hose. Inlet G 1" (f), outlet G 3/4" (f)

Features

Pressure 10 bar
Compatible fluids AdBlue®
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 1" (f)
Outlet G 3/4" (f)
Reel flow path AISI 304 stainless steel

Certifications

8434.250

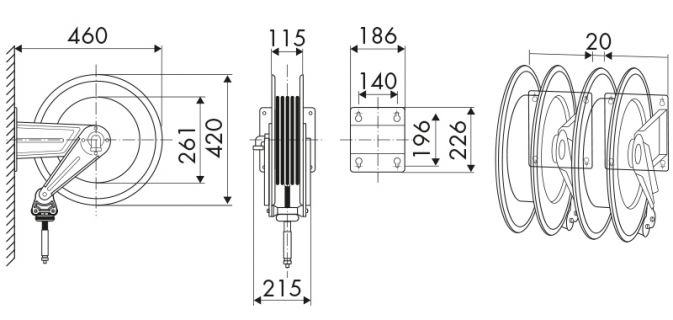

Overall dimensions (mm)

8434.250

Hose reels capacity

ø 5/16" ø 3/8" ø 1/2"
20 m 18 m 15 m
