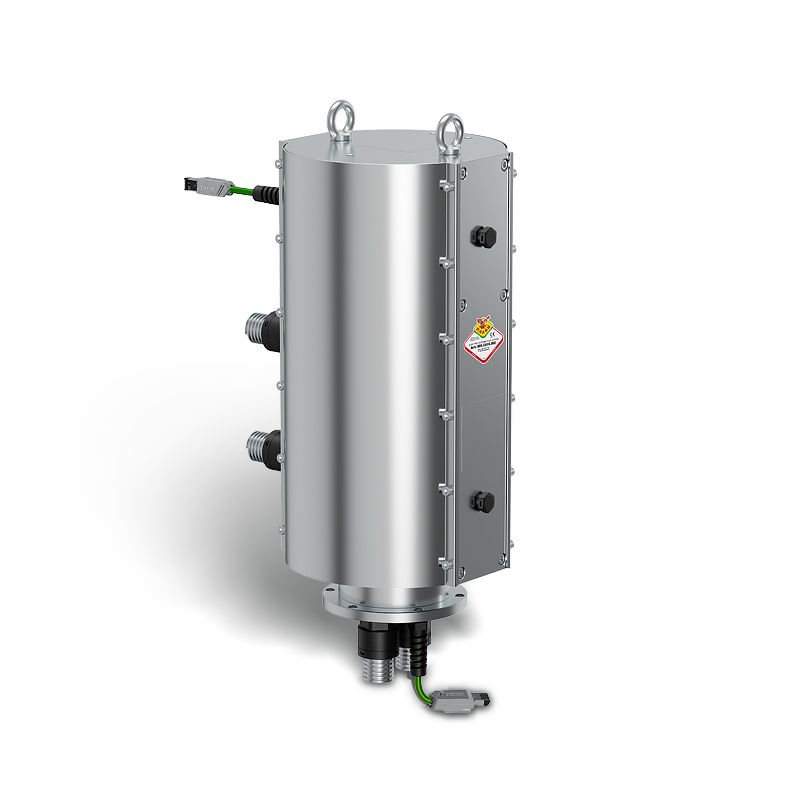

T200M series electric rotary slip ring, for p/n and more information please contact the technical department
Structure | Surface-treated aluminum |
Internal Components-Flange | Carbon steel |
Ring-side cable inlet/outlet | Axial |
Brush side cable inlet/outlet | Radial (axial on request) |
Possible pairings | Power - Signals - Data Module - Fluidic Joint |
Working temperature | +10 ÷ +60 °C |
Max voltage | 600 V |
Max rated current in rotation | 100 A |
Signals - Network Protocols | Analogues - Digital - Data 100 Mbps/1 Gbps |
Placement | Horizontal (supported if provided by design) - Vertical |
Protection degree | IP56-T200 - IP54-T200M |
RPM | max 60 |
