8563.104

P/N 8563.104

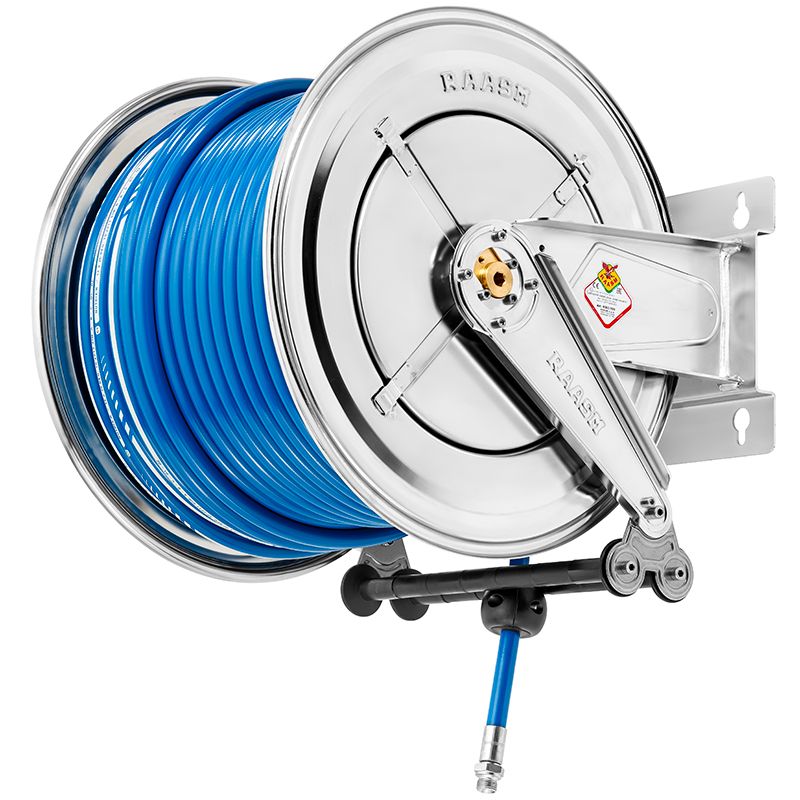

Fixed hose reel in AISI 304 stainless steel s. 560, for air-water, 10 bar, with hygienic hose 20 m, ø 1"

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 998.120
ø and hose length ø 1" - 20 m
Inlet G 1" (f)
Outlet G 1" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

8563.104

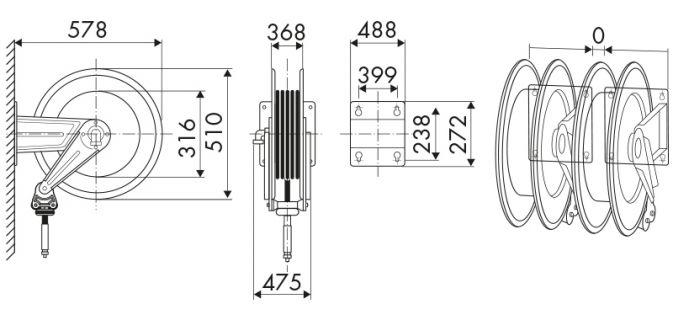

Overall dimensions (mm)

8563.104

This product is also available without hose
