8542.406

P/N 8542.406

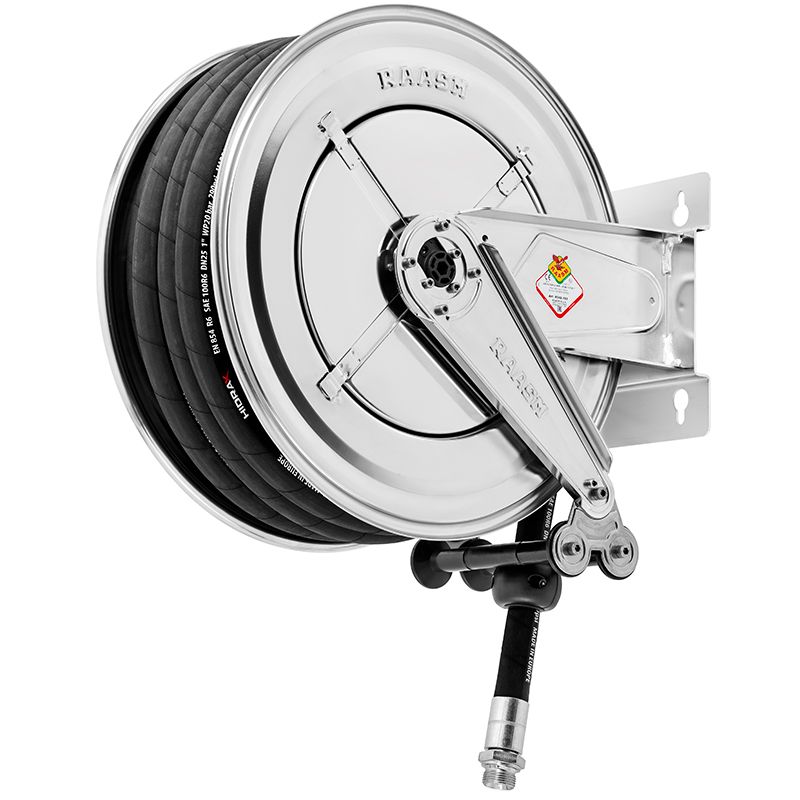

Fixed hose reel in AISI 304 stainless steel s. 540, for oil and similar, 150 bar, with black rubber hose 30 m, ø 1/2"

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 996.330
ø and hose length ø 1/2" - 30 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

8542.406

Overall dimensions (mm)

8542.406

This product is also available without hose
