8532.150

P/N 8532.150

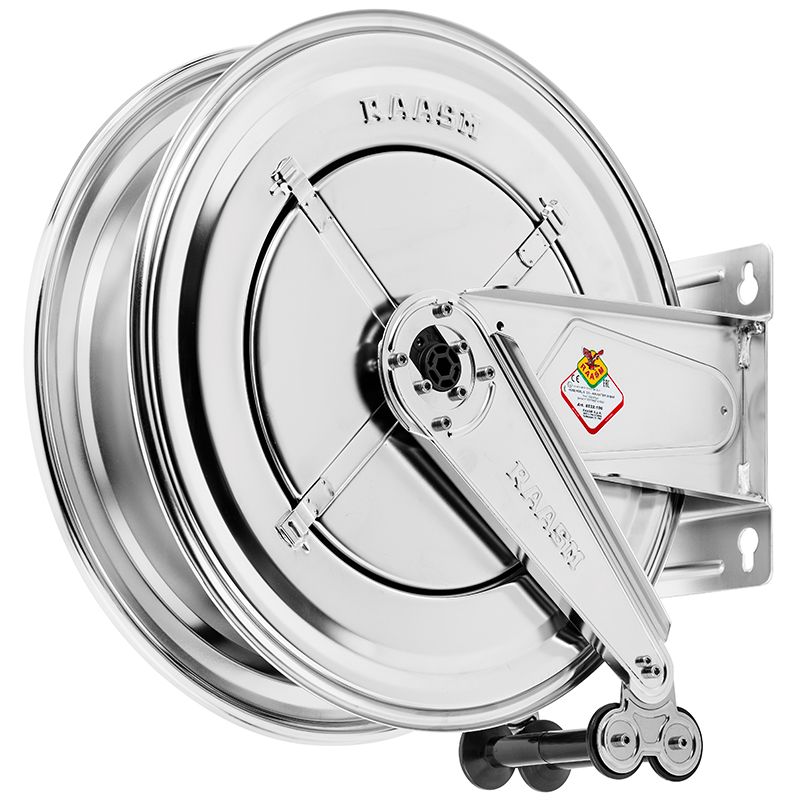

Fixed hose reel in AISI 304 stainless steel s. 530, for air-water, 20 bar, without hose. Inlet-outlet G 1" (f)

Features

Pressure 20 bar
Compatible fluids air - water - diesel fuel
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path brass - AISI 304 stainless steel

Certifications

8532.150

Overall dimensions (mm)

8532.150

Hose reels capacity

ø 1/2" ø 5/8" ø 3/4"
16 m 14 m 8 m
