8434.550

P/N 8434.550

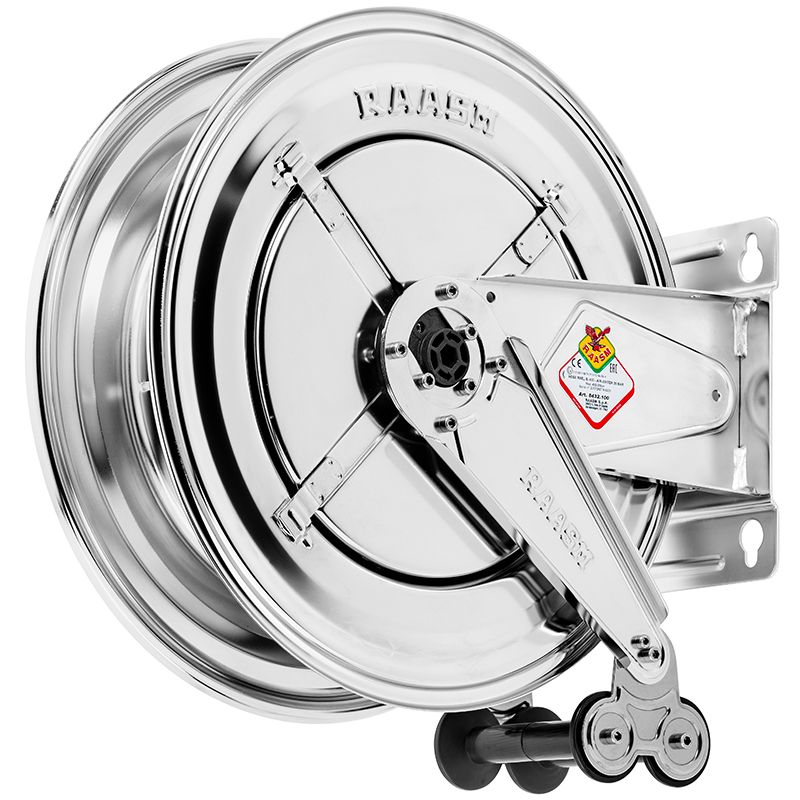

Fixed hose reel in AISI 304 stainless steel s. 430, for hot water, 700 bar, without hose. Inlet G 3/8 (f), outlet G 1/2 (f)

Features

Pressure 700 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Teflon®
Characteristic fixed
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel

Certifications

8434.550

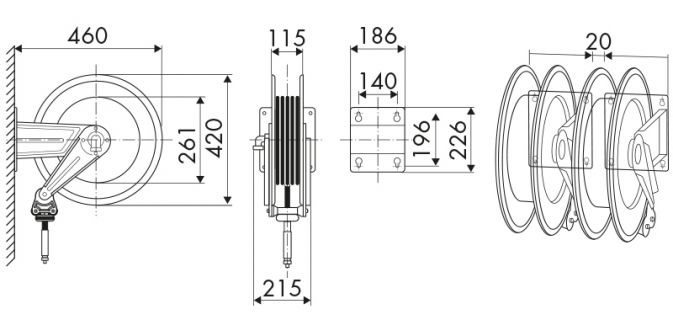

Overall dimensions (mm)

8434.550

Hose reels capacity

ø 5/16" ø 3/8"
12 m 15 m
