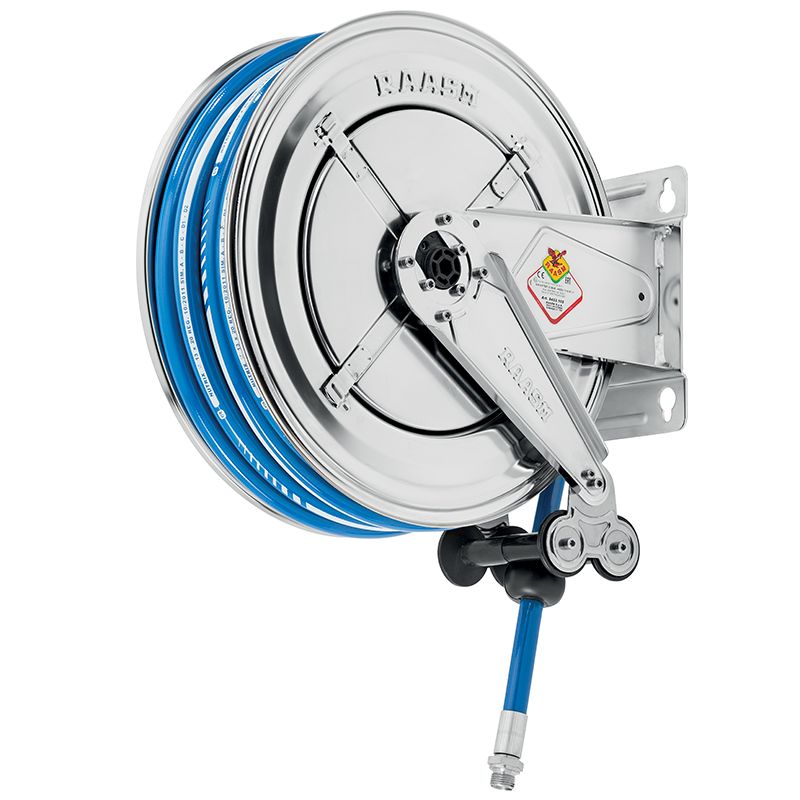

Fixed hose reel in AISI 304 stainless steel s. 430, for air-water, 10 bar, with hygienic hose 10 m, ø 1/2"
| Pressure | 10 bar |
| Compatible fluids | air - water |
| Swivel joint | AISI 304 stainless steel |
| Seals | Viton® |
| Characteristic | fixed |
| Material | AISI 304 stainless steel |
| Couplings | AISI 316 stainless steel |
| Hose | p/n 986.110 |
| ø and hose length | ø 1/2" - 10 m |
| Inlet | G 1/2" (f) |
| Outlet | G 1/2" (m) |
| Reel flow path | AISI 304 stainless steel |
This product is also available without hose
