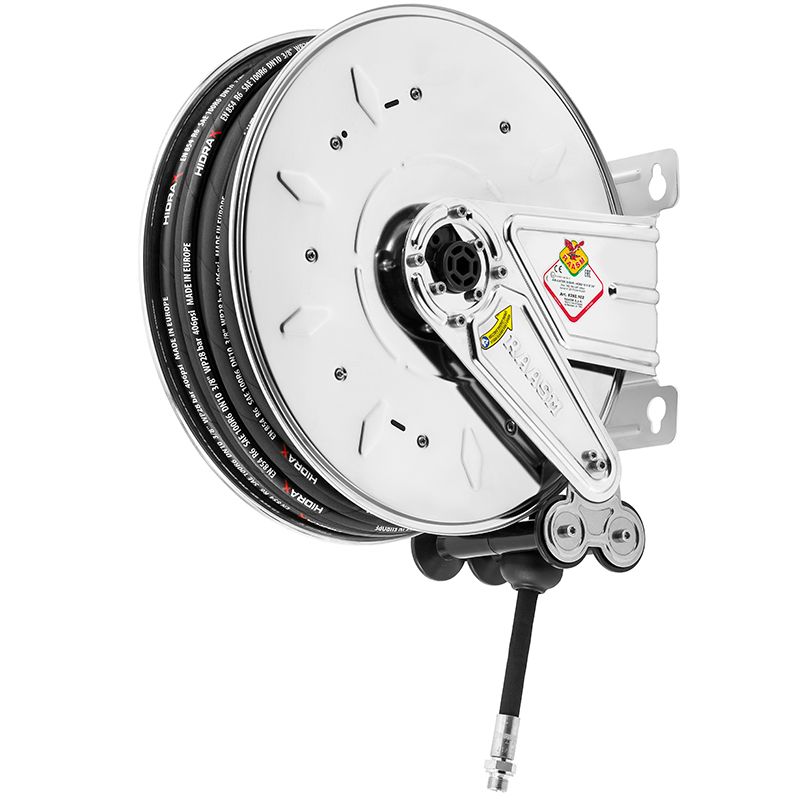

Fixed hose reel in AISI 304 stainless steel s. 390, for hot water, 200 bar, with black rubber hose 17 m, ø 5/16"
| Pressure | 200 bar |
| Compatible fluids | water max 130 °C |
| Swivel joint | AISI 304 stainless steel |
| Seals | Viton® |
| Characteristic | fixed |
| Material | AISI 304 stainless steel |
| Couplings | zinc plated steel |
| Hose | p/n 994.517 |
| ø and hose length | ø 5/16" - 17 m |
| Inlet | G 3/8" (f) |
| Outlet | G 3/8" (f) |
| Reel flow path | AISI 304 stainless steel |
This product is also available without hose
