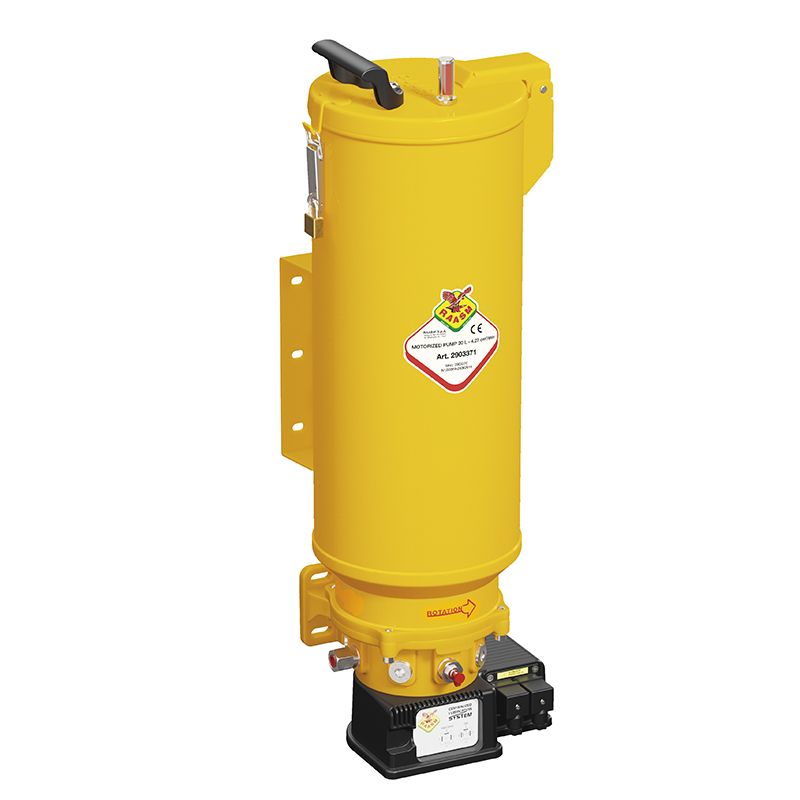

Motor operated pump s. C30B18M for grease 24 V DC with 1 pumping element, 20 litres reservoir, min level indicator and analogic display
Flow rate | 4,27 cm3/min |
Tank capacity | 20 l |
Control type | analog |
Delivery union | G 1/4" (f) |
Tank filling | by hydraulic greaser |
N° of pumping elements | 1 |
Working temperature | -25 ÷ +60 °C |
Lubricant | grease max NLGI 2 |
Supply | 24 V DC |
Protection degree | IP66 |
Packing | No. 1 - 0,09 m3 |
Net weight | 14,4 kg |
Gross weight | 16,5 kg |
