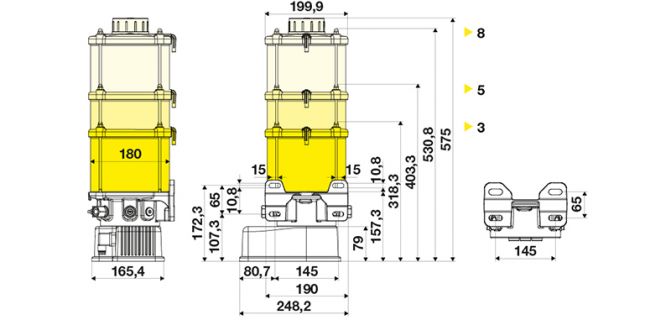

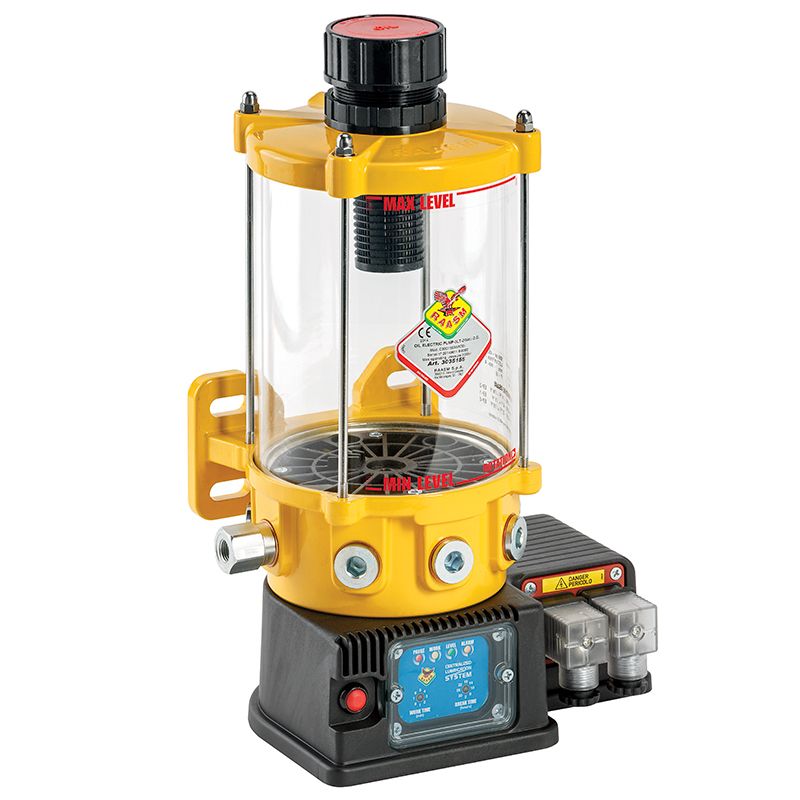

Motor operated pump s. C30B18 for oil 24 V DC with 1 pumping element, 5 litres reservoir, min level indicator and analogic display
| Flow rate | 4,27 cm3/min |
| Tank capacity | 5 l |
| Control type | analog |
| Delivery union | G 1/4" (f) |
| Tank filling | by hydraulic greaser |
| N° of pumping elements | 1 |
| Working temperature | -25 ÷ +60 °C |
| Lubricant | oils > 40 cSt |
| Supply | 24 V DC |
| Protection degree | IP66 |
| Packing | No. 1 - 0,037 m3 |
| Net weight | 6 kg |
| Gross weight | 7 kg |
