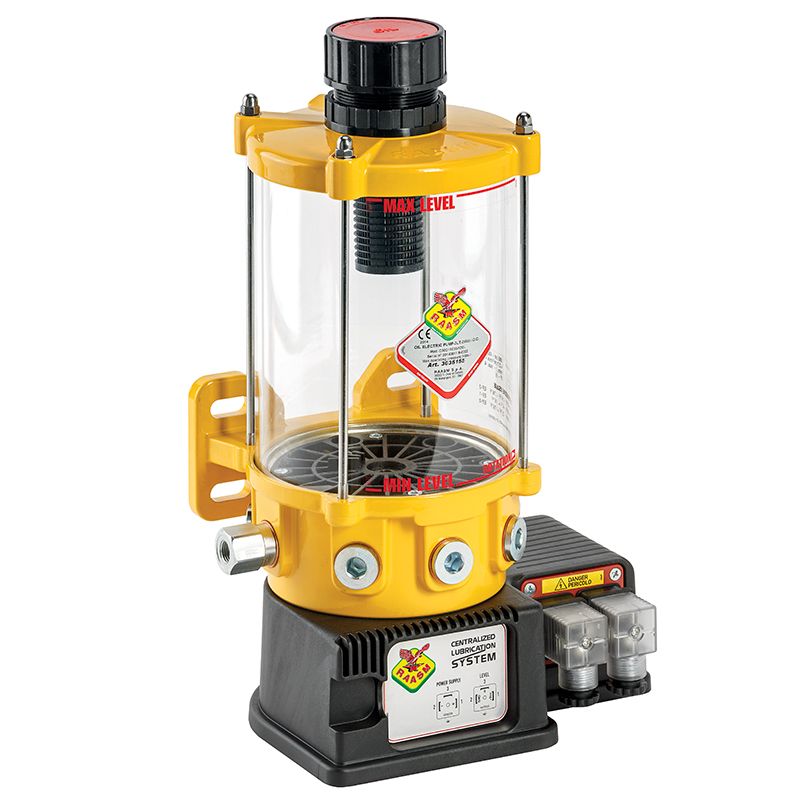

Motor operated pump s. C30B18 for oil 12 V DC with 1 pumping element, 3 litres reservoir, min level indicator and remote display
| Flow rate | 4,27 cm3/min |
| Tank capacity | 3 l |
| Control type | remote |
| Delivery union | G 1/4" (f) |
| Tank filling | by hydraulic greaser |
| N° of pumping elements | 1 |
| Working temperature | -25 ÷ +60 °C |
| Lubricant | oils > 40 cSt |
| Supply | 12 V DC |
| Protection degree | IP66 |
| Packing | No. 1 - 0,030 m3 |
| Net weight | 5,8 kg |
| Gross weight | 6,7 kg |
