2070455

P/N 2070455

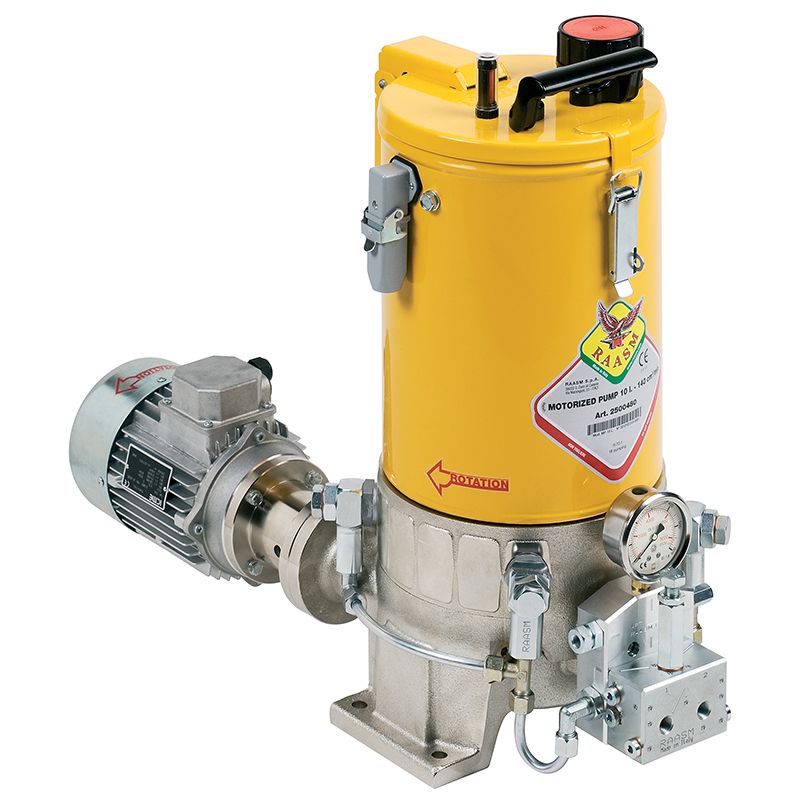

Motor operated pump s. C20S for oil 230-400 V AC - 50 Hz - 275-480 V AC - 60 Hz 6 poles and 4 pumping element, R 35:1, 10 liters reservoir, min level indicator and overpressure reversing valve

Features

Flow rate 108 cm3/min
Tank capacity 10 l
Reducer ratio 35:1
Lubricant inlet connection G 1/2" (f)
Lubricant outlet connection G 1/4" (f)
N° of pistons 4
Working temperature -25 ÷ +60 °C
Compatible fluids oils > 40 cSt
Supply 230/400 V AC - 50 Hz - 275/480 V AC - 60 Hz
Protection degree -
Velocity 6 poles: 870 ÷ 1100 rpm
Packing No. 1 - 0,152 m3
Net weight 29,3 kg
Gross weight 41,1 kg

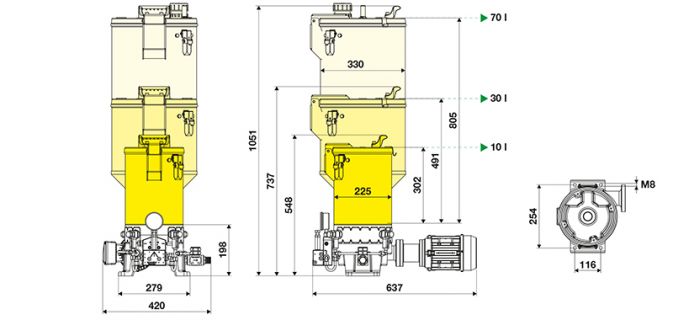

Overall dimensions (mm)

2070455
