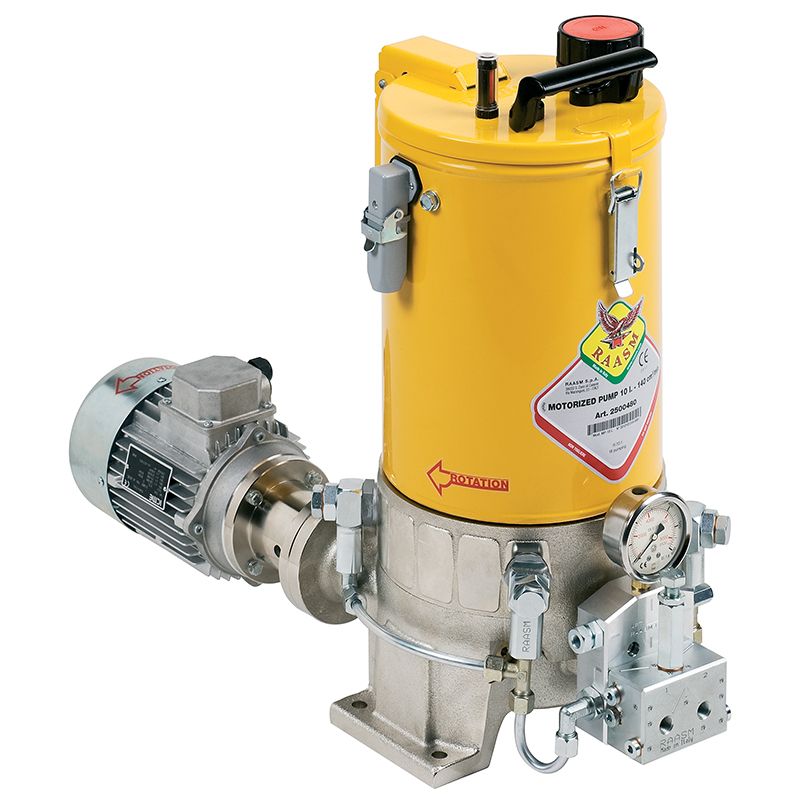

Motor operated pump s. C20S for oil 230-400 V AC - 50 Hz - 275-480 V AC - 60 Hz 4 poles and 4 pumping element, R 70:1, 10 liters reservoir, min level indicator and overpressure reversing valve
Flow rate | 80 cm3/min |
Tank capacity | 10 l |
Reducer ratio | 70:1 |
Lubricant inlet connection | G 1/2" (f) |
Lubricant outlet connection | G 1/4" (f) |
N° of pistons | 4 |
Working temperature | -25 ÷ +60 °C |
Compatible fluids | oils > 40 cSt |
Supply | 230/400 V AC - 50 Hz - 275/480 V AC - 60 Hz |
Protection degree | - |
Velocity | 4 poles: 1370 ÷ 1660 rpm |
Packing | No. 1 - 0,152 m3 |
Net weight | 29,3 kg |
Gross weight | 41,1 kg |
