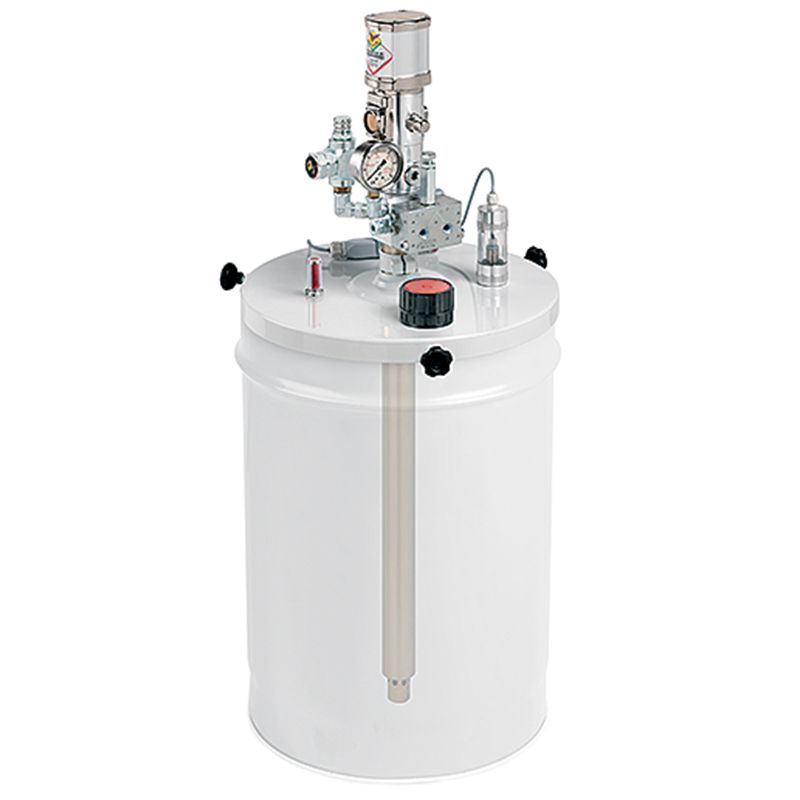

Air operated pump s. C20F for oil with 50 kg reservoir (external ø 340÷385 mm), R 50:1 and overpressure reversing valve
Flow rate | 1330 cm3/min |
Tank capacity | 50 ÷ 60 kg |
Pressure ratio | 50:1 |
Air inlet connection | G 1/4" (f) |
Lubricant outlet connection | G 1/4" (f) |
Working temperature | -25 ÷ +60 °C |
Lubricant | oils > 40 cSt |
Drum internal ø | 340 ÷ 385 mm |
Pump(R 50:1) | p/n 62674 |
Drum cover | p/n 10/503 |
Bung adaptor | - |
Minimum level indicator | - |
Packing | No. 2 - 0,086 m3 |
Net weight | 13,4 kg |
Gross weight | 14 kg |
