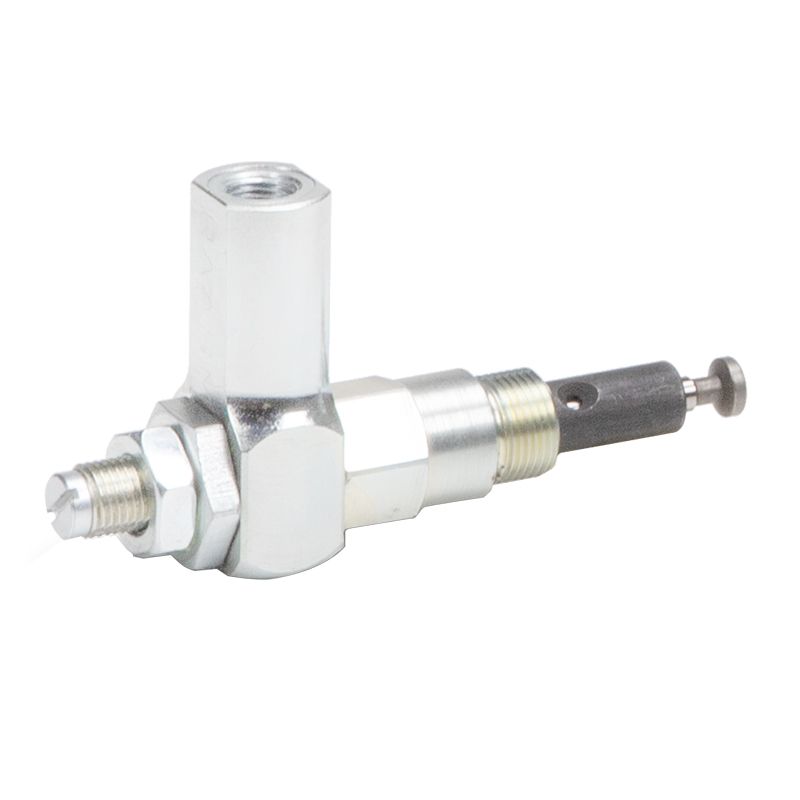

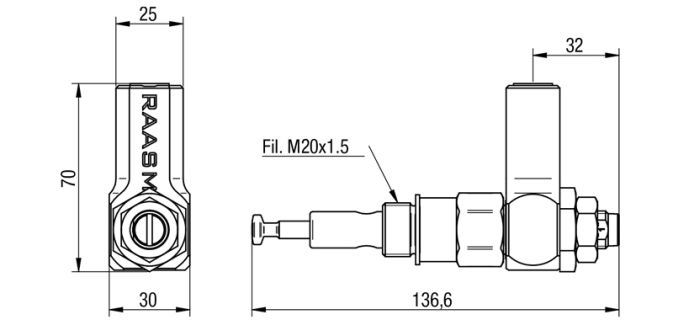

Adjustable pumping element, ø 6.5 mm, for motorised pumps s. C30B15 - C30B18
| Flow rate | 0 ÷ 4,2 cm3/min |
| Max stroke | 12 mm |
| Flow notches | 1 - 2 - 3 |
| Flow rate for notches | 0,0 - 2,1 - 4,2 cm3/min |
| Delivery connection | G 1/4" (f) |
| Pump connection | M20x1,5 |
| Material | Galvanized steel carbunitriding + tempering treatment |
| Gasket | NBR |
