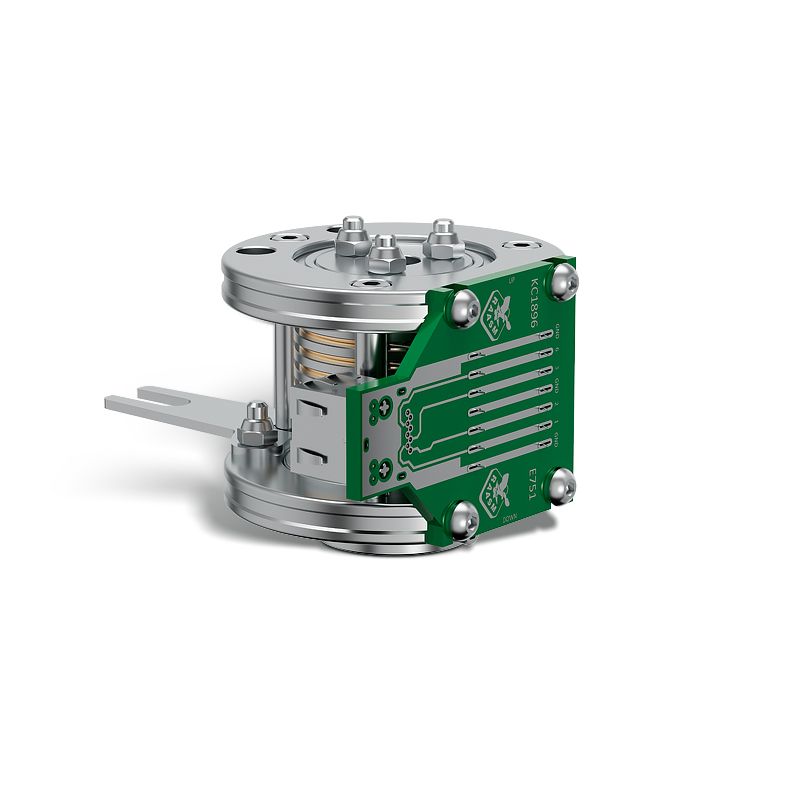

ETH100 series data transfer slip ring, for p/n and more information please contact the technical department
| Structure | Aluminum |
| Contact type | Filament-based |
| Ring-side cable inlet/outlet | Axial |
| Brush side cable inlet/outlet | Radial |
| Possible pairings | Plug-in slip rings with power - signals - data - fluidic joints |
| Working temperature | +10 ÷ +60 °C |
| Max voltage | 24 V DC |
| Max rated current in rotation | 2 A |
| Signals - Network Protocols | Analogues - Digital - Data 100 Mbps/1 Gbps |
| Placement | Horizontal - Vertical |
| RPM | max 500 |
