3086625

Art. 3086625

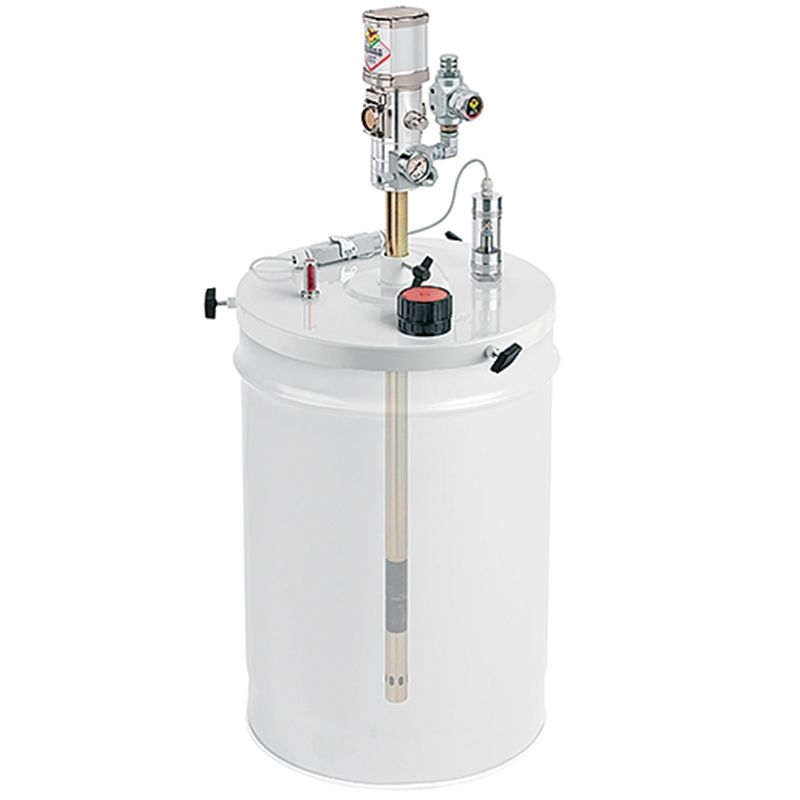

Motor operated pump s. C30F for oil with 60 kg reservoir with G 2" (f) thread, R 50:1 and delivery pressure control assembly

Eigenschaften

Förderleistung 1330 cm3/min
Fassungsvermögen des Tanks 50 ÷ 60 kg
Verdichtungsverhältnis 50:1
Material Kugelventile G 1/4" (f)
Anschluss Fettauslauf G 3/8" (f)
Betriebstemperatur -25 ÷ +60 °C
Schmiermittel Öle > 40 cSt
ø innen Fass geschlossenes - Gewinde 2"
Pumpe (R 50:1) Art. 62174
Fassdeckel ø -
Befestigungsring Art. 38041
Mindestfüllstandsanzeige Art. 39650
Verpackung N° 2 - 0,076 m3
Nettogewicht 9,1 kg
Bruttogewicht 9,7 kg

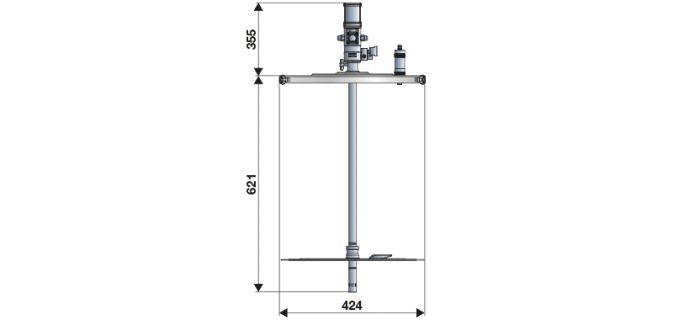

Gesamtabmessungen (mm)
